The double-cut carbide burrs can meet the highest demands on metal processing due to the hardness of the tungsten carbide substrate and their stronger tooth formulation.
This type of carbide burr machine can help to achieve better stock removal and granular chip break when you match these carbide burrs with a pneumatic die grinder or use them in your automated CNC machine.

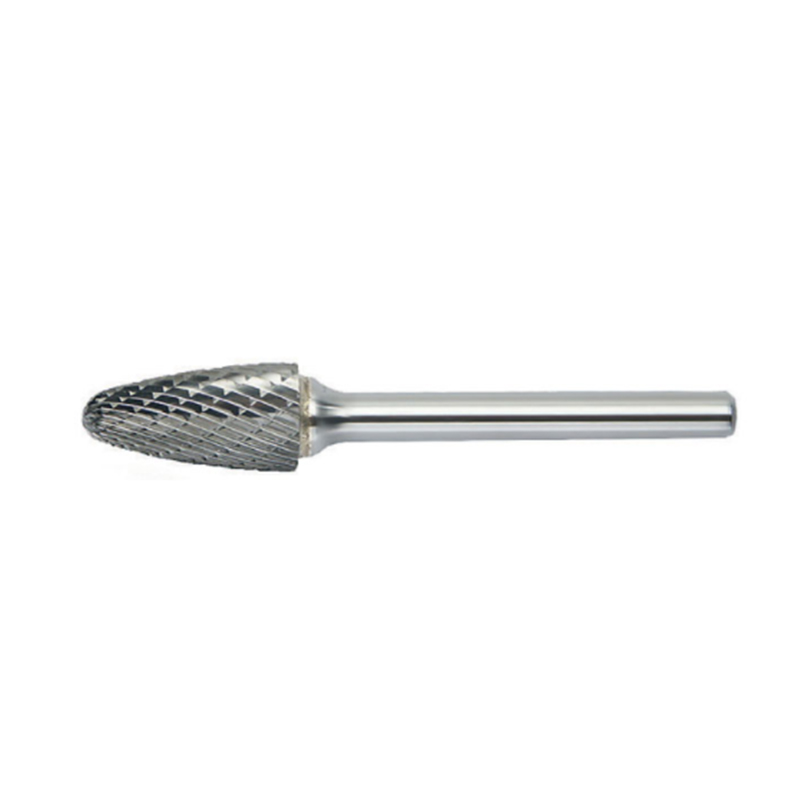

*F122506, Tree with radius
Diameter: 12mm
Cutting length: 25mm
Shank Diameter: 6mm
Overall: 70mm
Cut: Double
| OD | LOC | SHK | OAL | Single cut | Double cut |
| 3 | 12 | 3 | 38 | F031203S38/SC | F031203S38/DC |
| 3 | 12 | 3 | 50 | F031203S50/SC | F031203S50/DC |
| 3 | 12 | 3 | 75 | F031203S75/SC | F031203S75/DC |
| 6 | 12 | 3 | 50 | F061203/SC | F061203/DC |
| 6 | 16 | 6 | 61 | F061606/SC | F061606/DC |
| 8 | 20 | 6 | 65 | F082006/SC | F082006/DC |
| 10 | 20 | 6 | 65 | F102006/SC | F102006/DC |
| 11 | 25 | 6 | 70 | F112506/SC | F112506/DC |
| 12 | 19 | 6 | 64 | F121906/SC | F121906/DC |
| 12 | 25 | 6 | 70 | F122506/SC | F122506/DC |
| 16 | 25 | 6 | 70 | F162506/SC | F162506/DC |
| 19 | 25 | 6 | 70 | F192506/SC | F192506/DC |
Tungsten carbide
Safety glasses
Safety gloves
Hearing protection
Made of high virgin and premium tungsten carbide material
Large production capability
Suitable for all skill levels and easy to grasp and operate, safe and reliable
high-quality plastic case for burrs safe storage and protection
High-quality brazing
Stock available
Free samples for all customers in the world
